Accueil / Batterie Ni-MH à large température 3,6V 500 mAh pour unité informatique de véhicule TBOX

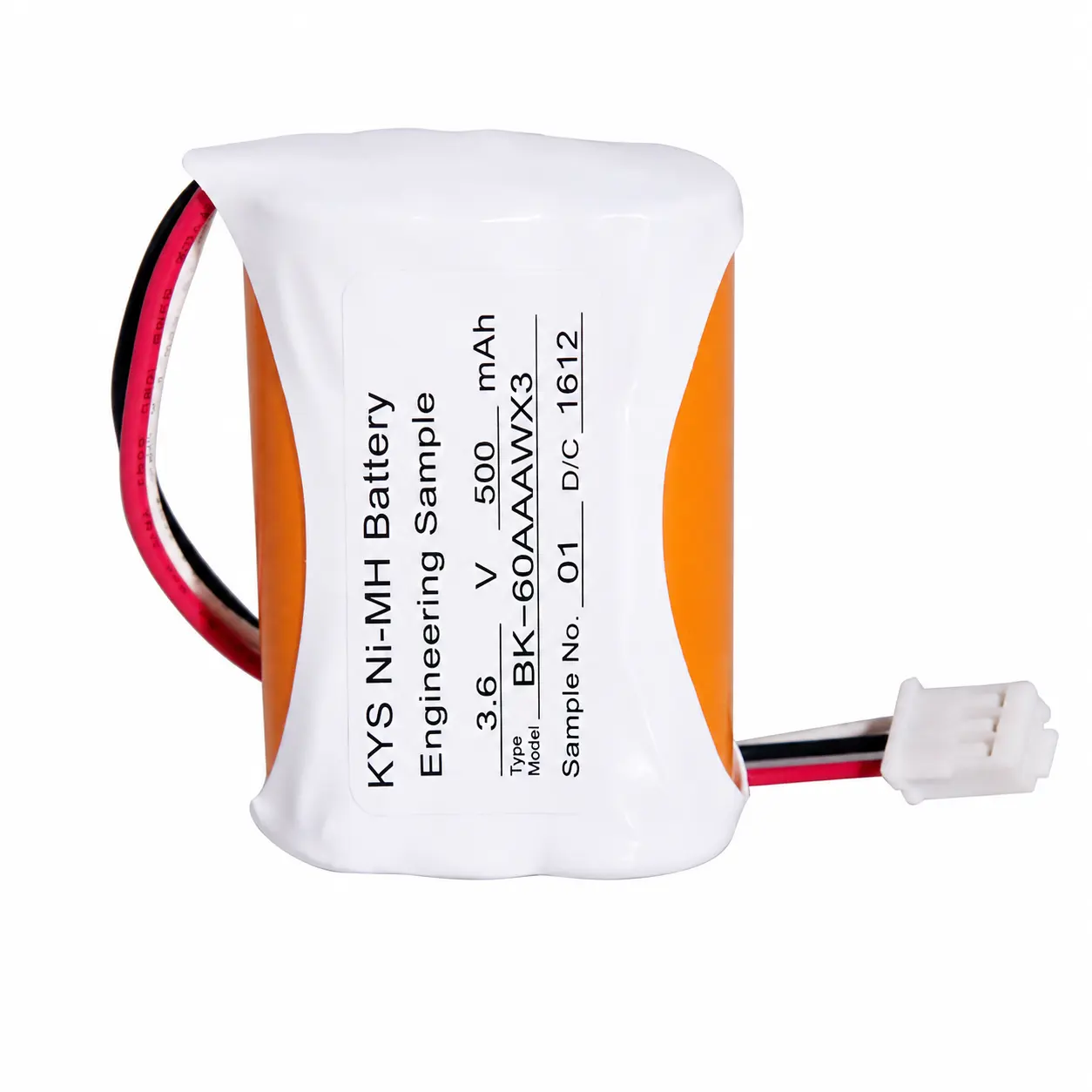

3.6V 500mAh wide-temperature Ni-MH battery specially designed for TBOX vehicle computing units. It provides stable backup power for automotive electronics, GPS tracking, telematics, and communication systems, ensuring reliable performance in both high and low temperature environments.
What's in the Box
| Spécification | Details |
|---|---|
| Tension nominale | 3.6V |
| Nominal Capacity | 500mAh |
| Taille de la batterie | 11 × 33 × 48 mm |
| Charging Temperature | -20°C à 60°C |
| Discharge Temperature | -20°C to 85°C |
Enquête
Retour à la liste des produits
Aperçu
The 3.6V 500mAh Wide-Temperature Ni-MH Battery is specially designed for TBOX vehicle computing units, delivering stable and reliable power in harsh automotive environments. With excellent high and low temperature performance, this battery supports long service life, safe operation, and consistent energy output. Its compact design makes it ideal for automotive electronics, telematics systems, GPS tracking, and vehicle communication devices.
Multi-scenario Adaptation
Remote Control
Toy
Keyboard
Alarm Clock
Shaver
Water Heater
Gas Stove
Gas Meter
Parking Lock
Flashlight
Blood Pressure Monitor
Microphone
Détails du produit
| Caractéristiques clés | Details |
|---|---|
| Low-Temperature Discharge | Supports discharge from -20°C to 85°C |
| Low-Temperature Charging | Supports charging from -20°C to 60°C |
| Wide-Temperature Storage | Supports storage from -40°C to 85°C |
| Durée de vie du cycle | More than 1000 charge/discharge cycles |
Product Specification
| Détails du produit | Caractéristiques techniques |
|---|---|
| Battery Specification | NI-MH AAA 500mAh 3.6V |
| Cell Model | NI-MH AAA 500mAh 1.2V |
| PTC | 260PTC |
| Protection Circuit | Without Protection Circuit |
| Tension nominale | 3,6 V |
| Nominal Capacity | 500 mAh |
| Taille de la batterie | 11 × 33 × 48 mm |
| Résistance interne | ≤ 180 mΩ |
| Battery Weight | 80 g |
| Charging Conditions | 50 mA × 16 hours / 250 mA × 2.4 hours |
| Continuous Discharge Current | 1.0 A |
| Protection Current | 5.2 A (260PTC) |
| Tension de charge | 4.5 V |
| Cut-off Discharge Voltage | 3.0 V |
| Durée de vie du cycle | ≥ 1000 cycles (0.5C charge / 1.0C discharge, remaining capacity ≥ 60%) |
| Charging Temperature | -20°C à 60°C |
| Discharge Temperature | -20°C to 85°C |
| Température de stockage | -40°C to 85°C |
